Radial bearings and associated profiles

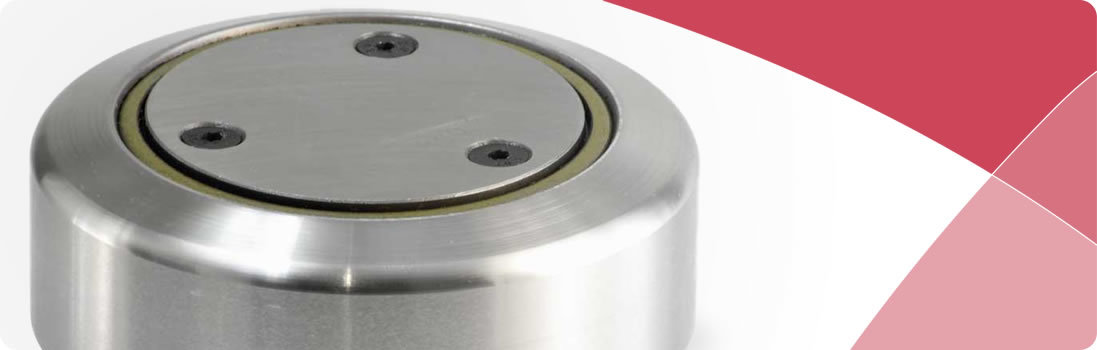

What are radial bearings with a pivot?
Radial bearings with pivot are specially designed bearings that support only radial loads. Unlike combination bearings, these bearings offer no axial guidance, making them ideal for applications where only radial loads occur.
Benefits of radial bearings
- Simple construction
- Specific applications
- Low maintenance
Technical specification
Pivot radial bearings are available in a variety of sizes and capacities. Some examples:
| Type | Dynamic load capacity (kN) | Static load capacit (kN) |
|---|---|---|
| 200-0856 | 31 | 35.5 |
| 200-0363 | 31 | 35.5 |
| 200-0360 | 45.5 | 51 |
Download the full size chart and technical data here! Size chart: Radial bearing and associated profiles
Profiles
The accompanying profiles are manufactured from hot-rolled structural steel (ST52-3) and can be supplied in any length up to a maximum of 12 meters.
Please note that the inside sides of the profiles should be free of paint, coating or other treatments to ensure optimal operation of bearings.
